BeamPro SWIR Beam Profiler
IR Beam Profiler for SWIR wavelength range of 900 - 1700 nm
Beam profiles in the SWIR wavelength range (Short Wave Infrared) with high sensitivity at low noise are available with our InGaAs-based BeamPro SWIR beam profilers. These beam profilers are frequently used for tunable laser applications, Raman, 3-Photon microscopy, as well as for 1550 nm, the most widely used wavelength in optical telecom communication. They have an integrated thermo-electric cooling (TEC) to improve sensitivity in low power applications.
900 – 1700 nm
C-mount lens connection
InGaAs-based Beam Profiler for tunable laser beams, Raman, 3-photon-microscopy, telecom and more
Integrated thermo-electric cooling for high sensitivity
InGaAs Beam Profiler

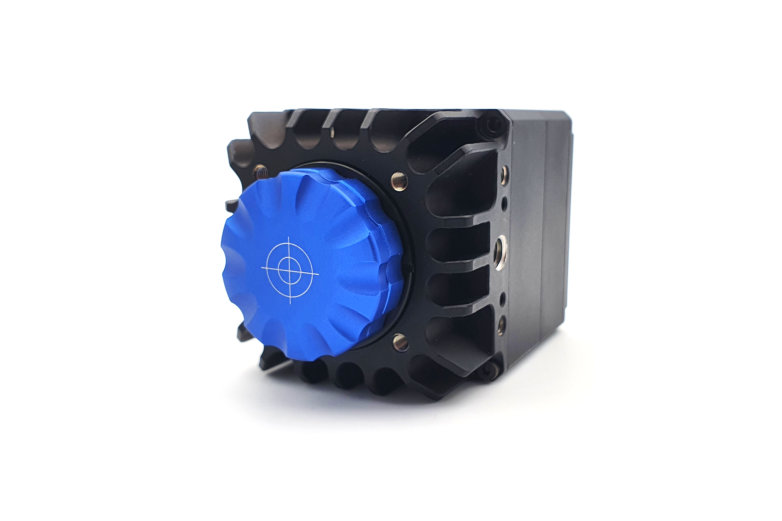

The optimum wavelength sensitivity in the IR range from 900 – 1700 nm is provided with Femto Easy’s BeamPro SWIR.
HDR Option
With HDR option the beam profiler offers a dynamic range of up to 120 dB (see specs for details).
Technical Specification
Femto Easy’s BeamPro SWIR beam profilers come with a user-friendly and powerful software at no additional costs. Discover the technical specifications and do not hesitate to contact us for your questions.
| SWIR 5.4 | SWIR 10.8 | SWIR 13.10 | SWIR 21.17 | |
|---|---|---|---|---|
| Spectral range | 900 - 1700 nm | |||
| Application | All laser types: CW, pulsed, ultrafast, single-shot | |||
| Sensor size (mm) | 4.8 x 3.8 | 9.6 x 7.7 | 12.8 x 10.2 | 21 x 17 |
| Sensor type, format | InGaAs, 1/2" | InGaAs, 1" | InGaAs, 1" | InGaAs, APS-C |
| Resolution | 320 x 256 0.08 Mpx | 640 x 512 0.3 Mpx | 1280 x 1024 1.3 Mpx | 640 x 512 0.3 Mpx |
| Pixel pitch (μm) | 15 | 15 | 10 | 33 |
| Minimum beam diameter (Φ FWHM, μm) | 75 | 75 | 50 | 270 |
| Maximum acquisition frame rate (fps)1 | 1000 | 230 | 60 | 230 |
| Exposure time | 10 µs - 50 ms | |||
| Shutter type | Global | |||
| Dynamic (dB) | 63 / 120 (with HDR option) | 63 / 120 (with HDR option) | 61 / 120 (with HDR option) | 63 / 120 (with HDR option) |
| Bit depth | 14 | |||
| PC Interface | USB 3.0 | |||
| Synchronization | yes with trigger option | |||
| Dimensions (mm) | 46 x 46 x 53 | 46 x 46 x 57 | 58 x 58 x 70 | 46 x 46 x 57 |
Optional Features
Windowless: Removal of the BeamPro sensor window to avoid potential interferences
Additional ND filters: The default BeamPro configuration includes one ND filter. Additional ones with different specifications can be ordered
High dynamic range (120 dB): Software mode to increase the dynamic of the BeamPro signal acquisition from 14 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image
Trigger: Synchronization of the BeamPro detection to an external signal for accurate laser single pulse measurement
Beam profiler software STAR
- Live extraction of beam properties, even with resolutions larger than 20 Mpx
- Several parameters and methods supported (ISO calculation included)
- Enhanced background & hot pixels treatment for optimum dynamic and signal-to-noise ratio
- Client / Server interface, allowing remote control through network
- Advanced logging and permanent access to the 10 previous acquisitions
- Live comparison with up to 10 different reference measurements
- 1-click installation, completely configurable, export assistant
