µ-ROC
Worlds smallest autocorrelator
Pulse duration measurement made easy
Ti:Sa | Yb
Single-shot
get immediate results even on single-pulses
Alignment free
saves up to 90% time compared to conventional autocorrelators
Robust design
No moving parts, non sensitive to vibrations
Spatially-resolved measurements
Measurement of beam profile and pulse duration distribution over one diameter

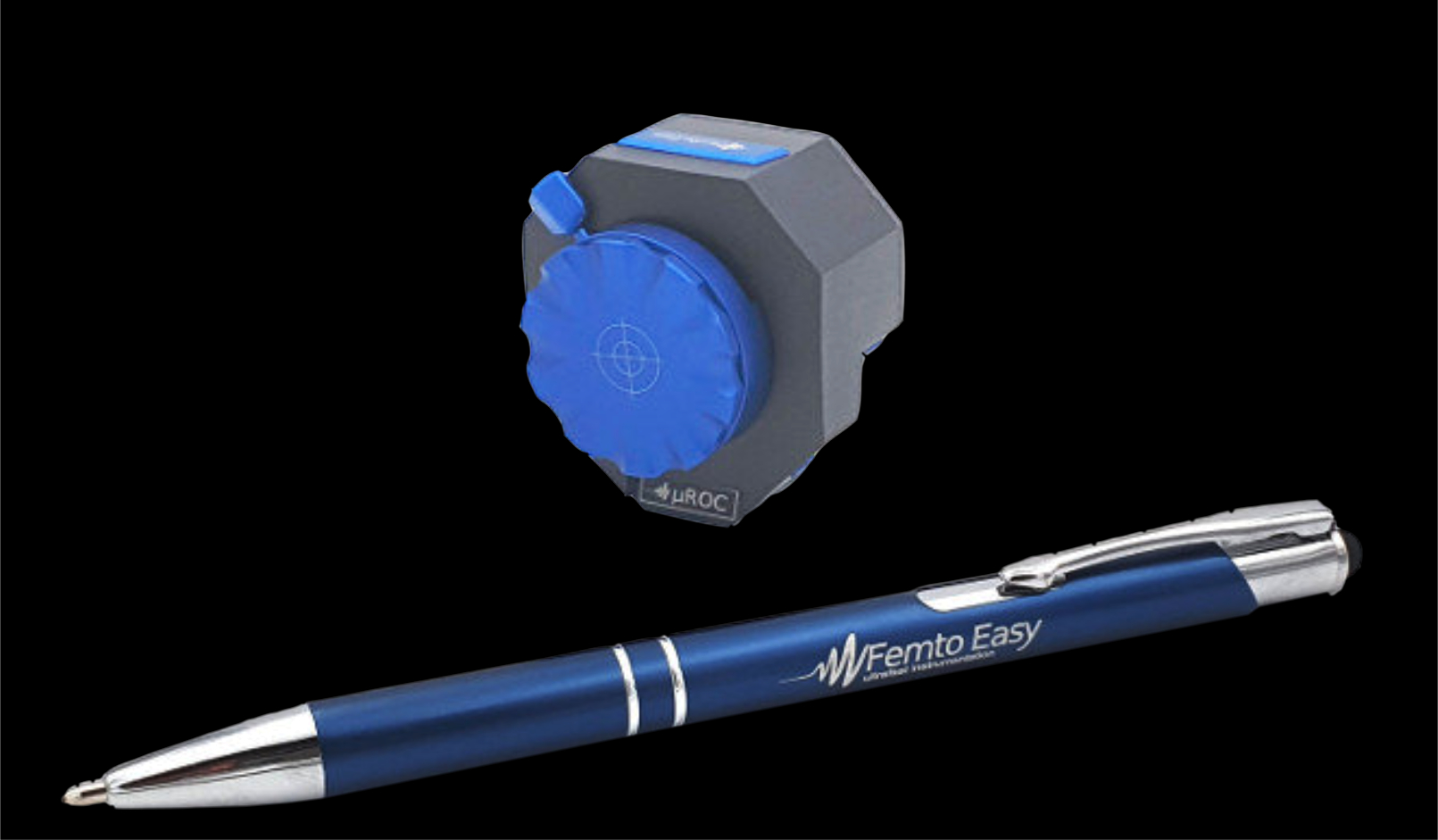

Discover the autocorrelator in miniature form
The µ-ROC marks the start of a new era of compact size without compromise. It impresses with its miniature form and high-quality workmanship and brings autocorrelation measurements directly into machines, lasers, medical equipment and everywhere where little space is available.
- Length: 40 mm
- Height: 45 mm
- Depth: 30 mm
Applications
Scientific
Laser-Development
To be used on Yb-, Ti:Sa- and similar laser types
Integration into experimental setups
Space-saving
Long-term performance monitoring
Unattended remote monitoring of lasers
Industrial / OEM
Laser-Development
esp. Yb, Ti:Sa and similar
Machine & laser integration
Simplifying service travels
Lightweight accessory for service engineers
Spatially-resolved measurements
Measurement of beam profile and pulse duration distribution over one diameter
Technical Specification
 | | | |
|
|---|---|---|---|---|
Ti:Sa | Yb |
|||
| Model type | ||||
| Spectral range (nm) | ||||
| Pulse duration min (fs) | ||||
| Pulse duration max (fs) | ||||
| Input pulse repetition rate | ||||
| Input pulse energy min2 Single-Shot 1 MHz 100 MHz | 10 µJ 10 nJ 0.5 nJ | 25 µJ 100 nJ 5 nJ | 5 µJ 5 nJ 0.1 nJ | 5 µJ 5 nJ 0.1 nJ |
| Single-pulse measurement3 | 100 kHz triggered | 100 kHz triggered | 100 kHz triggered | 100 kHz triggered |
| Size (mm) | L: 40 D: 30 | L: 40 D: 30 | L: 40 D: 30 | L: 40 D: 30 |
Input polarization: linear horizontal or vertical
Detection: CMOS 12 Bits
PC Interface: USB 3.1
Beam height: 20 mm
1 Pulse duration
The two minimum pulse duration values correspond to the Fourier limited pulse duration with and without GDD precompensation
2 Input pulse energy min
Values give an order of magnitude, exact sensitivity depends on parameters such as pulse duration, beam profile, wavelength…
3 Single-pulse
Up to 100 kHz laser repetition rate with Trigger option, 50 kHz without
Software
The Femto Easy software has been designed to be user friendly and intuitive. This is a modern software compatible with touchscreen that can run either under Linux or Windows. It allows distant control of the devices via PC, tablet or smartphone. We can also provide custom software developments upon request.
µ-ROC operation
By loading the video, you agree to YouTube's privacy policy.
Learn more
Open video in a new tab (no access to Youtube required)
When compactness meets user-friendliness
The µ-ROC has been designed with ease-of-use and ultra-compactness in mind. Watch the µ-ROC operation by yourself in this short video
