MISS 2D spectrometer
Acquire spatially-resolved spectrum of laser beams
MISS (Mini Imaging Spatial Spectrometer) gives access to the spatially-resolved (2D) spectrum of laser beams. Thanks to its unique compactness, MISS allows vertical and horizontal spatial chirp measurements at any position of your beam path. It can easily be integrated at different stages of amplified laser systems. It can be used in free-space mode to take benefit of the spatial resolution, or conveniently with a fiber input, like a regular spectrometer (plug & play SMA fiber connector included).
Ultra-compact and robust
Spatial chirp measurement
High spatial and spectral resolutions
Input beam diameter up to 12.7 mm
UV - VIS - SWIR
Available documentation
2D / 3D drawings
2D spectrum characterization for many common types of lasers
A conventional spectrometer allows you to know the spectrum for your laser, i.e. the intensity of each wavelength (or frequency) present in your laser. Most of regular spectrometers give an average spectrum (1D), where imaging spectrometer allows you to know the spectrum at different positions along the laser beam cross-section (2D).

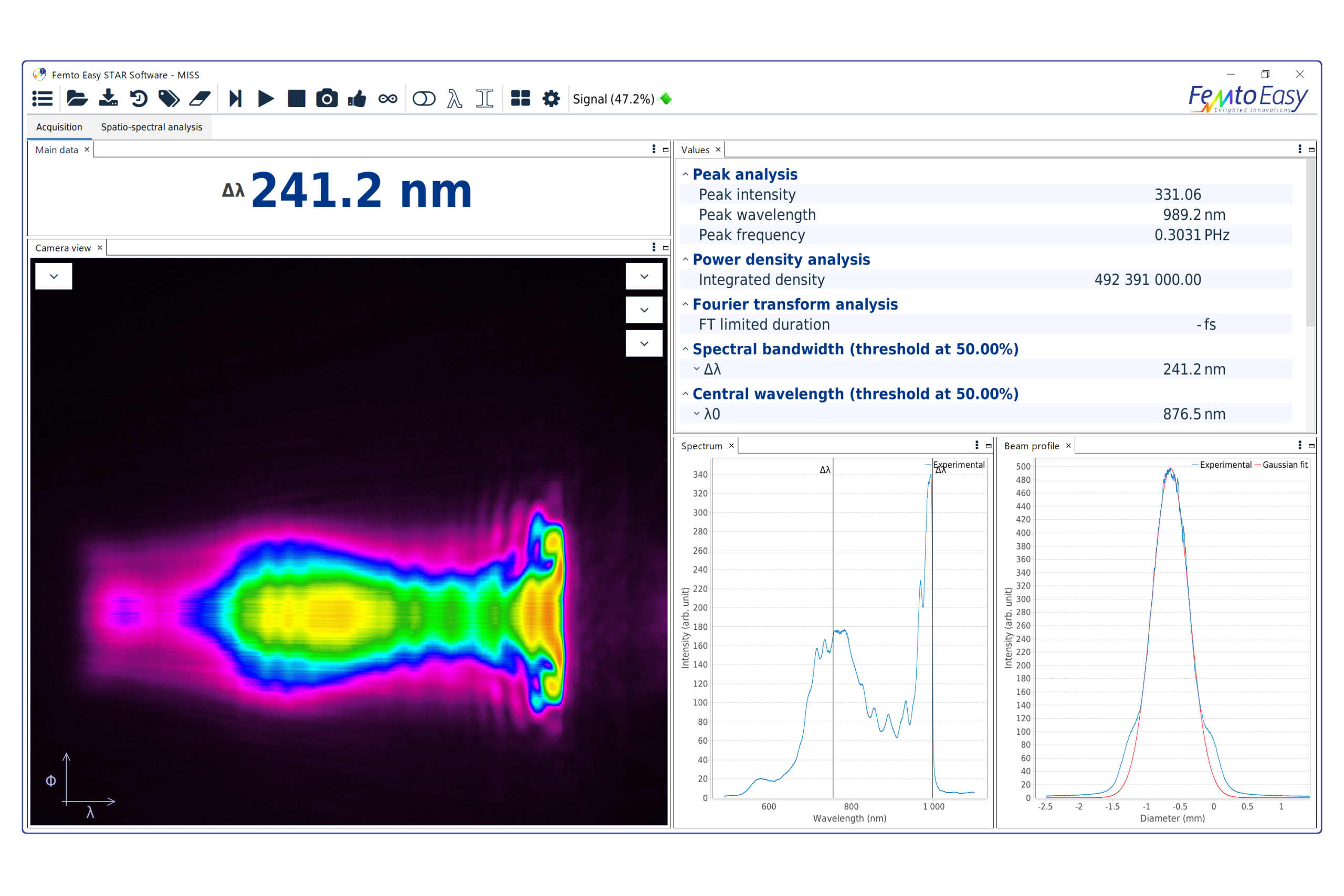

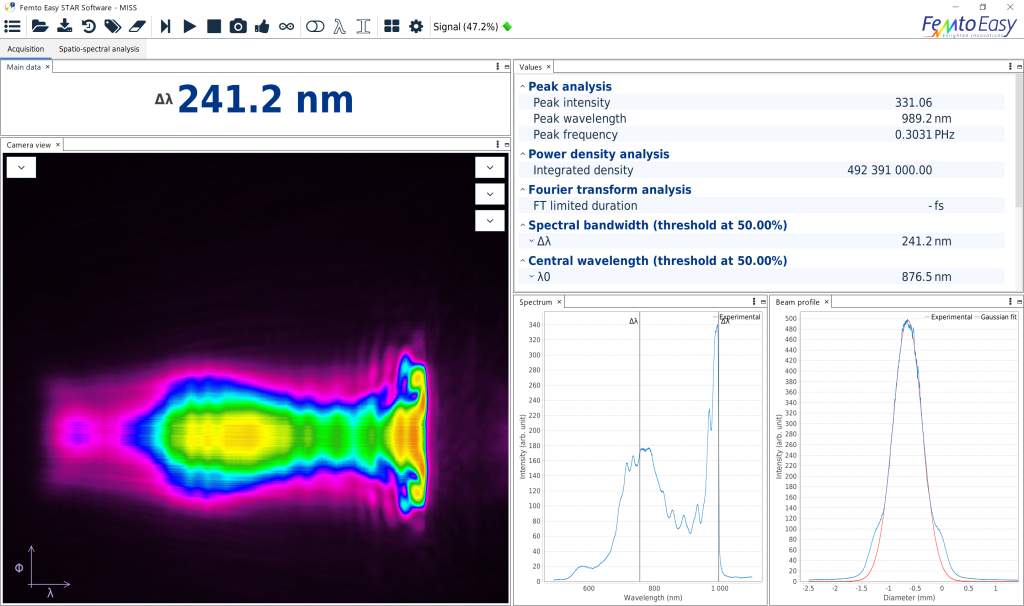

Our MISS spectrometer gives you a two dimensions image, one dimension being the position in one diameter of the beam, the other being the spectrum at this position.
2D imaging spectrometers therefore perform a spatially resolved spectral characterization of lasers, which is very helpful for investigation of spatio-spectral couplings such as the spatial chirp usually induced in the compressor stages of ultrafast lasers or during the amplification stage of broadband spectrum.
Product reviews
Product reviews
The MISS-Broadband-L was acquired as a test device to extend our high-energy pulse metrology capabilities. Thanks to its performance, ease of use, and the company’s support in integrating the imaging spectrometer with our in-house developed code, it is now the central element of our spatio-spectral characterisation, such as compressor alignment or spatio-temporal measurements.
Enrique García-García
CLPU - Spain
Laser Engineer
Our MISS-Broadband-L and MISS-VSWIR imaging spectrometers are extremely useful to diagnose our few-cycle light sources, even after post-compression. The spatio-spectral resolution allows to check the pulse quality both in near and far field, that gives an unmatched performance for measuring the spatio-spectral distortions of ultrashort pulses.
Roland Nagymihály
ELI ALPS - Hungary
Group Leader, High Field Laser Group
Our MISS imaging spectrometer is very easy to use and much more compact than the other similar systems we have in our group. I also appreciate the very quick support from the team.
Chengyong Feng
LLE University of Rochester - USA
Researcher
Specifications:
MISS 2D Spectrometer : UV-Vis
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | UV-VIS | IR | Yb | TiSa | UV-VIS-L | IR-L | TiSa-L | Broadband-L | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Type | Standard beam size | Standard beam size | Standard beam size | Standard beam size | Large beam (L) | Large beam (L) | Large beam (L) | Large beam (L) |
| 2 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Spectral range (nm) | 240 - 800 | 545 - 1100 | 900 - 1090 | 725 - 875 | 250 - 700 | 650 - 1100 | 360 - 1040 | 280 - 1095 |
| 3 | Goran | 10/02/2026 06:42 PM | Mathieu | 18/02/2026 04:56 PM | Camera resolution | 2056 x 1542 - 3 Mpx | 2056 x 1542 - 3 Mpx | 2056 x 1542 - 3 Mpx | 2056 x 1542 - 3 Mpx | 2448 x 2048 - 5 Mpx | 2448 x 2048 - 5 Mpx | 2448 x 2048 - 5 Mpx | 5472 x 3478 - 20 Mpx |
| 4 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Spectral sampling (nm/px) | 0.29 | 0.27 | 0.11 | 0.11 | 0.23 | 0.22 | 0.28 | 0.16 |
| 5 | Goran | 10/02/2026 06:42 PM | Mathieu | 19/02/2026 12:56 PM | Optical spectral resolution (nm)1 | < 1 | < 0.8 | < 0.35 | < 0.45 | 1 - 1.5 | 1 - 1.3 | 1 - 1.5 | 0.6 - 1.1 |
| 6 | Goran | 10/02/2026 06:42 PM | Mathieu | 19/02/2026 01:43 PM | Input beam size (mm) | > 6.3 | > 6.3 | > 6.3 | > 8.6 | > 12.5 | > 12.5 | > 12.5 | > 12.5 |
| 7 | Goran | 10/02/2026 06:42 PM | Mathieu | 19/02/2026 01:43 PM | Max spatial resolution (μm) | < 4.5 | < 4.5 | < 4.5 | < 4.5 | 5.2 | 5.2 | 6.5 | 3.6 |
| 8 | Goran | 10/02/2026 06:42 PM | Mathieu | 19/02/2026 01:01 PM | Exposure timemin – max (ms) | 0.024 - 1 000 | 0.024 - 1 000 | 0.024 - 1 000 | 0.024 - 1 000 | 0.013 - 1 000 | 0.013 - 1 000 | 0.013 - 1 000 | 0.011 - 1 0002 |
| 9 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Shutter type | Global | Global | Global | Global | Global | Global | Global | Rolling |
| 10 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Detection | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB | CMOS 12 Bits – 72 dB |
| 11 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | PC Interface | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 |
| 12 | Goran | 10/02/2026 06:42 PM | Goran | 10/02/2026 06:42 PM | Dimensions (mm) | 102 x 101 x 52 (Format A) | 102 x 101 x 52 (Format A) | 102 x 101 x 52 (Format A) | 102 x 101 x 52 (Format A) | 117 x 102 x 52 (Format B) | 117 x 102 x 52 (Format B) | 117 x 102 x 52 (Format B) | 117 x 102 x 52 (Format B) |
1 Resolution achieved on the highest resolved part of the spectral range
2 Due to rolling shutter, the actual minimum exposure time to properly capture the whole beam will be limited by the laser beam size (in case of single-shot measurement) or by the laser repetition rate. For single-shot measurement : the larger the beam, the longer the required minimum exposure time. Otherwise, the slower the repetition rate, the longer the required minimum exposure time.
Custom versions available on request.
MISS 2D Spectrometer : SWIR
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | SWIR 320 | SWIR 1280 | VSWIR 656 | VSWIR 656-L | VSWIR 1296 | VSWIR 1296-L | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:39 PM | Type | Standard beam size | Standard beam size | Standard beam size | Large beam (L) | Standard beam size | Large beam (L) |
| 17 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:39 PM | Accessible spectral range (nm) | 900 - 1700 | 900 - 1700 | 400 - 1700 | 400 - 1700 | 400 - 1700 | 400 - 1700 |
| 18 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:39 PM | Typical spectral window Δλ (nm) | 500 | 800 | 250 | 350 | 500 | 700 |
| 19 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:40 PM | Camera resolution | 320 x 256 - 0.08 Mpx | 1280 x 1024 - 1.3 Mpx | 656 x 520 - 0.3 Mpx | 656 x 520 - 0.3 Mpx | 1296 x 1032 - 1.3 Mpx | 1296 x 1032 - 1.3 Mpx |
| 20 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:40 PM | Spectral sampling (nm/px) | 1.7 | 0.7 | 0.4 | 0.6 | 0.4 | 0.6 |
| 21 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:40 PM | Optical spectral resolution (nm) 1 | 3.5 | 2 | 1 | 1.5 | 1 | 1.5 |
| 22 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:40 PM | Input beam size (mm) | 6.4 | 10.2 | 3.3 | 6.5 | 6.5 | 12.5 |
| 23 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:41 PM | Max spatial resolution (μm) | 25 | 10 | 6.3 | 12.5 | 6.3 | 12.5 |
| 24 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:41 PM | Exposure time min – max (ms) | 0.01 - 500 | 0.01 - 500 | 0.01 - 500 | 0.01 - 500 | 0.01 - 500 | 0.01 - 500 |
| 25 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:41 PM | Shutter type | Global | Global | Global | Global | Global | Global |
| 26 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:41 PM | Detection | InGaAs 12 Bits | InGaAs 12 Bits | InGaAs 12 Bits | InGaAs 12 Bits | InGaAs 12 Bits | InGaAs 12 Bits |
| 27 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 01:41 PM | PC Interface | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 |
| 28 | Goran | 10/02/2026 06:43 PM | Mathieu | 19/02/2026 03:52 PM | Dimensions (mm) | 117 x 102 x 52 | 117 x 102 x 52 | 102 x 101 x 52 | 117 x 102 x 52 | 102 x 101 x 52 | 117 x 102 x 52 |
{2nd_table_descripiton}
Optional features
High dynamic range
Software mode to increase the dynamic range of the MISS signal acquisition from 12 to 16 bits. Not compatible with pure single-shot measurements as 2 images are necessary
Trigger
Synchronization of the MISS detection to an external signal for accurate laser single pulse extraction up to 75 kHz
Fiber input connector
Fiber connector to connect a fiber and use the MISS as a regular spectrometer (not imaging)
Software
Like every Femto Easy product, the MISS comes with a powerful and very user friendly software, especially designed for touch screens, in order to give you the best user experience.
Learn more about softwareContact Us to Schedule Live Demo
