为用户提供前所未有的脉冲持续时间测量体验
ROC(直列式光学自相关仪)是一种紧凑且强大的的集成装置,用于测量单次自相关轨迹。该产品专为提供简易的用户体验而设计,它不仅不会错位,并且无需校准或调整。它便于携带,且结构非常坚固。此外,ROC 单次自相关仪还提供出色的技术性能和高精度的测量结果,并有多种型号适用于不同的波长范围和脉冲持续时间。
单次脉冲
超易使用
多功能
时间追踪
空间分辨测量

可用文档
二维 / 三维图纸
科学论文
Logical rotation of non-separable states via uniformly self-assembled chiral superstructures
Zhang, Yi-Heng; Liu, Si-Jia; Chen, Peng; Zhu, Dong; Chen, Wen; Ge, Shi-Jun; Wang, Yu; Zhang, Zhi-Feng; Lu, Yan-Qing;
Nature Communications; 2024, Nature Publishing Group UK London
Nanjing University; China
A 4-GHz actively driven ultra-low phase noise mode-locked fibre laser
Abdulkadir Yentur, Mehmet Ziya Keskin, and Ibrahim Ozdur
Electronics Letters; 2024, Wiley
TOBB University of Economics and Technology; Turkey
Optimization of 1.03 μm femtosecond pulse laser tripling efficiency based on temporal walk-off compensation
Yang, Li; Ji, Lailin; Liu, Dong; Rao, Daxing; Zhang, Tianxiong; Shan, Chong; Shi, Haitao; Zhao, Xiaohui; Cui, Yong; Gao, Yanqi;
Optics Communications; 2023, Elsevier
USST; China
产品评价
产品参数
ROC-Models
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | - | FC | FS10 | FS20 | PS1 | PS3 | PS5 | PS10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Pulse duration min | 5 fs | 10 fs | 20 fs | 50 fs | 70 fs | 100 fs | 200 fs |
| 2 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Pulse duration max | 150 fs | 250 fs | 500 fs | 1 ps | 3 ps | 5 ps | 10 ps |
| 3 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Accessible spectral range (nm)1 | 480 - 2100 | 480 - 2100 | 480 - 2100 | 480 - 2100 | 480 - 2100 | 480 - 2100 | 800 - 2100 |
| 4 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Dimensions (mm) | 55 x 56 x 233 (Format A) | 55 x 56 x 265 (Format B) | 55 x 56 x 233 (Format A) | 55 x 56 x 195 (Format C) | 55 x 56 x 195 (Format C) | 55 x 56 x 195 (Format C) | 55 x 56 x 195 (Format C) |
| 5 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Input pulse repetition rate2 | Single-shot to GHz | Single-shot to GHz | Single-shot to GHz | Single-shot to GHz | Single-shot to GHz | Single-shot to GHz | Single-shot to GHz |
| 6 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Single-pulse measurement | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) | up to 125 kHz laser repetition rate (with Trigger and Enhanced Detection options, or 18 kHz without) |
| 7 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Min input pulse energy3 | Single-shot : 1 µJ at 30 fs 40 MHz : 500 pJ at 30 fs | Single-shot : 1 µJ at 30 fs 40 MHz : 500 pJ at 30 fs | Single-shot : 1 µJ at 30 fs 40 MHz : 500 pJ at 30 fs | Single-shot : 1 µJ at 300 fs 40 MHz : 300 pJ at 300 fs | Single-shot : 1 µJ at 300 fs 40 MHz : 300 pJ at 300 fs | Single-shot : 1 µJ at 300 fs 40 MHz : 300 pJ at 300 fs | Single-shot : 1 µJ at 300 fs 40 MHz : 300 pJ at 300 fs |
| 8 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Input polarization | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) | linear horizontal (vertical if mounted on the side) |
| 9 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | Detection | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB | CMOS 12 Bits - 3 Mpx - 72 dB |
| 10 | Goran | 10/02/2026 06:35 PM | Goran | 10/02/2026 06:35 PM | PC Interface | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 | USB 3.1 |
| - | FC | FS10 | FS20 | PS1 | PS3 | PS5 | PS10 |
可选功能
相位匹配
默认的ROC配置适用于给定的中心波长。通过相位匹配,可以调整SHG晶体在测量不同中心波长时获得最佳的信噪比
外部触发器
将ROC 探测动作与外部信号同步,以实现在重频最高 36 kHz 时的精确激光单脉冲提取(如加购增强型探测可选功能则最高可至125 kHz )
内置衰减
可添加内置的滤光片轮可用于衰减光强。此选项在测量低重复频率、高能量(毫焦级)激光源时非常实用
高动态范围
通过软件实现提高ROC信号采集的动态范围,从12位增至16位。但不适用于纯单次测量,因该功能的实现需撷取两张图像
增强检测
该选项将ROC中默认嵌入的成像单元替换更高性能的单元,以提升系统的整体规格(例如获得更高的时间分辨率和在使用触发选项时实现在最高125 kHz重频下的单脉冲提取能力)
软件

所有关键数据一目了然: Femto Easy 设计旨在提供友好、直观的用户体验。这是一款适用于触控屏幕的现代软件,可在Linux或Windows系统上运行。它还支持通过PC、平板或智能手机进行远程设备控制。我们还可以根据要求提供定制软件开发服务。
了解更多联系我们预约在线演示视频
我们的工程师运用最新技术,打造了极易于使用又具有高科学性能的自相关仪解决方案
我们的工程师运用最新技术,打造了极易于使用又具有高科学性能的自相关仪解决方案
具有挑战性的周期量级脉测量示例

使用非无色差相关仪捕获的5.9飞秒周期量级脉冲

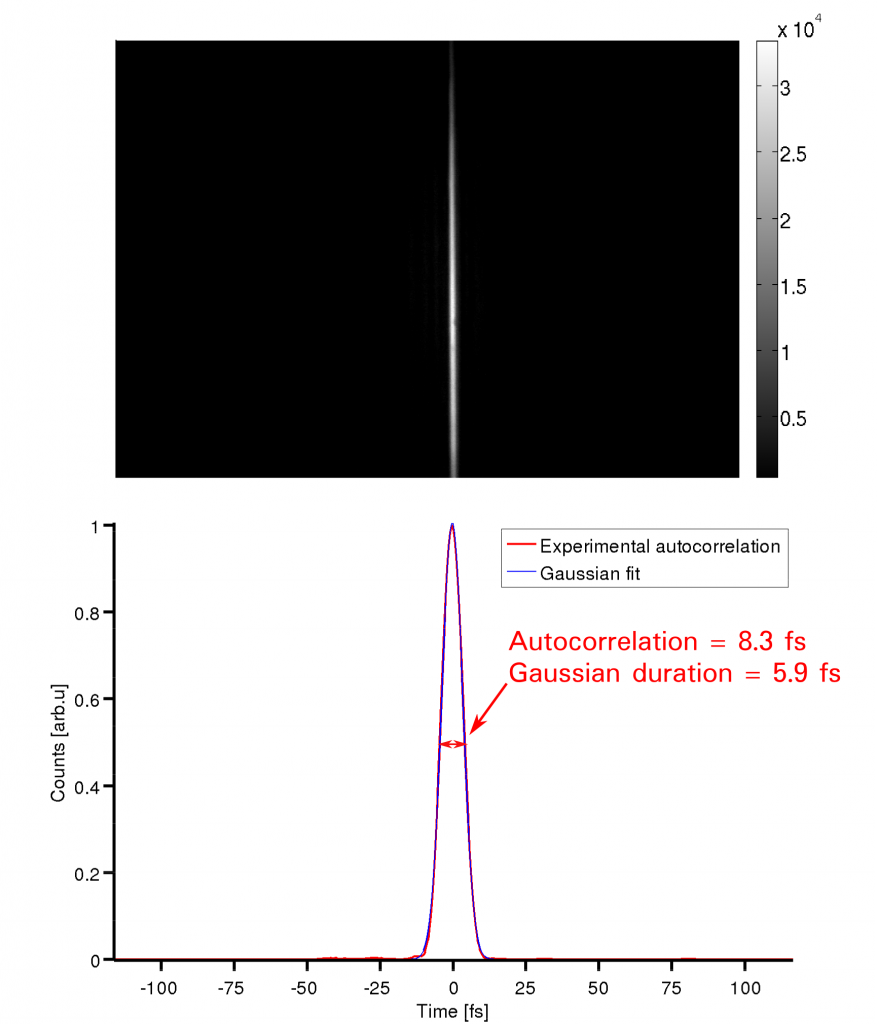

显示图像为在 米兰理工大学 使用我们的短脉冲型自相关仪ROC FC进行的超短脉冲自相关测量示例。顶部为空间分辨自相关迹线的原始图像。
底部是沿空间坐标积分所得的自相关迹线。实验数据(红色)用高斯函数(蓝色)进行拟合。自相关迹线的半峰全宽(FWHM)为8.3飞秒。相应的高斯脉冲持续时间为 5.9飞秒.

掺钛蓝宝石 (Ti:Sapph) 低能量脉冲,每脉冲为0.3纳焦

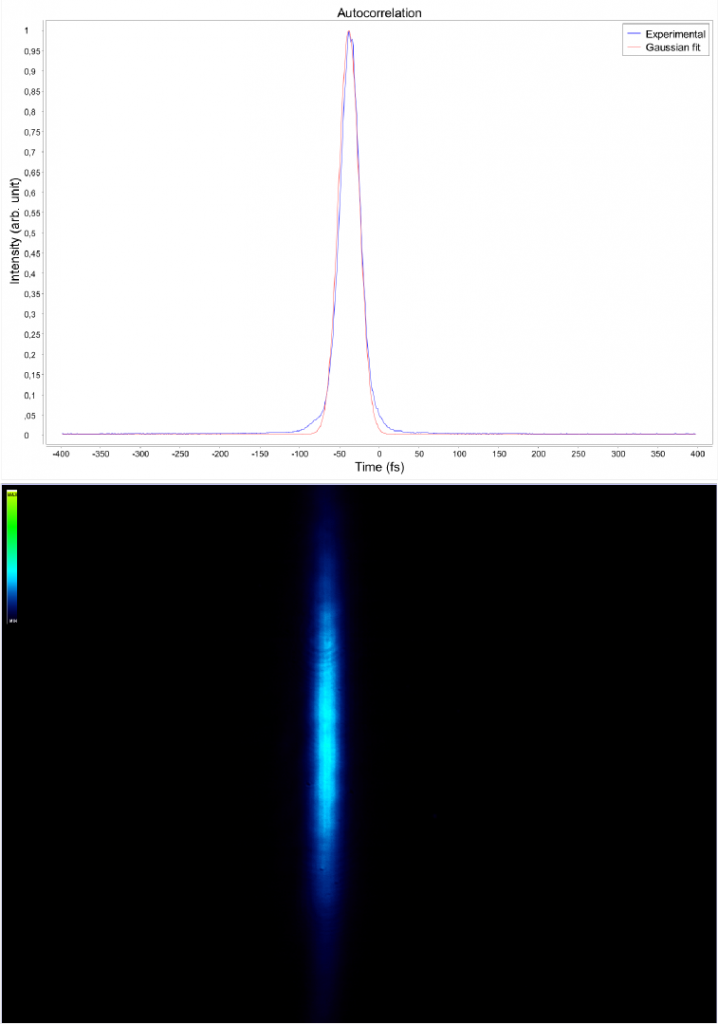

在 LCAR 使用ROC FC自相关仪测量的飞秒掺钛蓝宝石激光器:
测量使用的平均功率仅为 20毫瓦, 重复率为62兆赫(MHz)。这表示在脉冲能量仅 0.3纳焦时 就能够获得清晰的测量结果。底部是空间分辨自相关迹线的原始图像。顶部为沿空间坐标积分的分析自相关迹线。
实验数据(蓝色)由高斯函数(红色)拟合。自相关迹线的半峰全宽(FWHM)为30.4飞秒,对应的高斯脉冲持续时间为21.5飞秒。
